Only 7 left
XWA Aero Extractor-Inyector Helicoidal
$38,456.00
SKU
XWA
MXN + IVA
Extractor Helicoidal Industrial XWA ATC
El Extractor Helicoidal Industrial XWPA ATC es un equipo de ventilación industrial de alta eficiencia diseñado para aplicaciones en muro con acoplamiento directo a motor trifásico.
Características Principales
- - Diámetros disponibles: 24", 30", 36", 42"
- - Hélice de 7 aspas balanceada dinámicamente
- - Material: aluminio inyectado o polipropileno reforzado
- - Motor trifásico 220V / 440V
- - 4, 6 y 8 polos disponibles
- - Pintura poliéster horneada anticorrosiva
- - Cumple estándar AMCA 301
Aplicaciones
- Ventilación industrial
- Extracción de aire caliente
- Inyección de aire fresco
- Bodegas y almacenes
- Naves industriales
- Estacionamientos
- Talleres y cuartos de máquinas
Beneficios
- Alto caudal de aire (CFM)
- Eficiencia energética
- Bajo nivel de ruido
- Alta resistencia a la corrosión
- Larga vida útil
Precios
XWA Extractor - Inyector Helicoidal
Hélice de Aluminio Inyectado
| MODELO | CAUDAL | POTENCIA (HP) |
RPM | PRECIO M.N. | |
|---|---|---|---|---|---|
| CFM | M3/HR | ||||
| XWA-4-24/20° | 6,350 | 10,789 | 1.5 | 1,760 | $ 38,456.00 |
| XWA-4-24/25° | 7,970 | 13,541 | 2 | 1,760 | $ 38,844.00 |
| XWA-4-24/32.5° | 10,500 | 17,840 | 3 | 1,760 | $ 39,999.00 |
| XWA-4-24/40° | 12,800 | 21,747 | 5 | 1,760 | $ 42,425.00 |
| XWA-6-24/25° | 5,250 | 8,920 | 1/2 | 1,160 | $ 38,397.00 |
| XWA-6-24/30° | 6,360 | 10,806 | 3/4 | 1,160 | $ 38,677.00 |
| XWA-6-24/35° | 7,500 | 12,743 | 1 | 1,160 | $ 41,939.00 |
| XWA-6-24/40° | 8,440 | 14,340 | 1.5 | 1,160 | $ 43,711.00 |
| XWA-6-24/45° | 9,200 | 15,631 | 2 | 1,160 | $ 43,989.00 |
| XWA-4-30/20° | 10,500 | 17,840 | 2 | 1,760 | $ 40,689.00 |
| XWA-4-30/25° | 13,600 | 23,106 | 3 | 1,760 | $ 41,894.00 |
| XWA-4-30/30° | 16,700 | 28,373 | 5 | 1,760 | $ 43,666.00 |
| XWA-4-30/32.5° | 18,400 | 31,262 | 5 | 1,760 | $ 44,451.00 |
| XWA-6-30/20° | 6,900 | 11,723 | 3/4 | 1,160 | $ 40,521.00 |
| XWA-6-30/25° | 8,950 | 15,206 | 1 | 1,160 | $ 43,931.00 |
| XWA-6-30/32.5° | 12,100 | 20,558 | 2 | 1,160 | $ 46,081.00 |
| XWA-6-30/40° | 15,200 | 25,825 | 3 | 1,160 | $ 50,761.00 |
| XWA-4-36/25° | 18,300 | 31,092 | 5 | 1,760 | $ 54,454.00 |
| XWA-4-36/30° | 23,600 | 40,096 | 7.5 | 1,760 | $ 57,712.00 |
| XWA-6-36/25° | 12,100 | 20,558 | 1.5 | 1,160 | $ 54,117.00 |
| XWA-6-36/30° | 15,500 | 26,335 | 2 | 1,160 | $ 54,458.00 |
| XWA-6-36/35° | 19,300 | 32,791 | 3 | 1,160 | $ 59,135.00 |
| XWA-6-36/40° | 22,600 | 38,397 | 5 | 1,160 | $ 61,601.00 |
| XWA-8-36/30° | 11,500 | 19,539 | 1 | 860 | $ 56,631.00 |
| XWA-8-36/35° | 14,300 | 24,296 | 1.5 | 860 | $ 57,414.00 |
| XWA-8-36/40° | 16,800 | 28,543 | 2 | 860 | $ 59,506.00 |
| XWA-8-36/45° | 19,500 | 33,131 | 3 | 860 | $ 60,708.00 |
| XWA-4-42/25° | 25,100 | 42,645 | 7.5 | 1,760 | $ 60,466.00 |
| XWA-6-42/30° | 22,000 | 37,378 | 3 | 1,160 | $ 61,897.00 |
| XWA-6-42/32.5° | 25,000 | 42,475 | 5 | 1,160 | $ 63,719.00 |
| XWA-6-42/35° | 28,100 | 47,742 | 5 | 1,160 | $ 64,533.00 |
| XWA-6-42/37.5° | 30,500 | 51,820 | 7.5 | 1,160 | $ 78,593.00 |
| XWA-8-42/25° | 12,300 | 20,898 | 1 | 860 | $ 59,328.00 |
| XWA-8-42/30° | 16,300 | 27,694 | 1.5 | 860 | $ 60,145.00 |
| XWA-8-42/32.5° | 18,600 | 31,601 | 2 | 860 | $ 62,345.00 |
| XWA-8-42/35° | 20,800 | 35,339 | 3 | 860 | $ 63,598.00 |
NOTA:XW * - * - * * / * * - 3 440 - 220V/ 3F / 60 H z

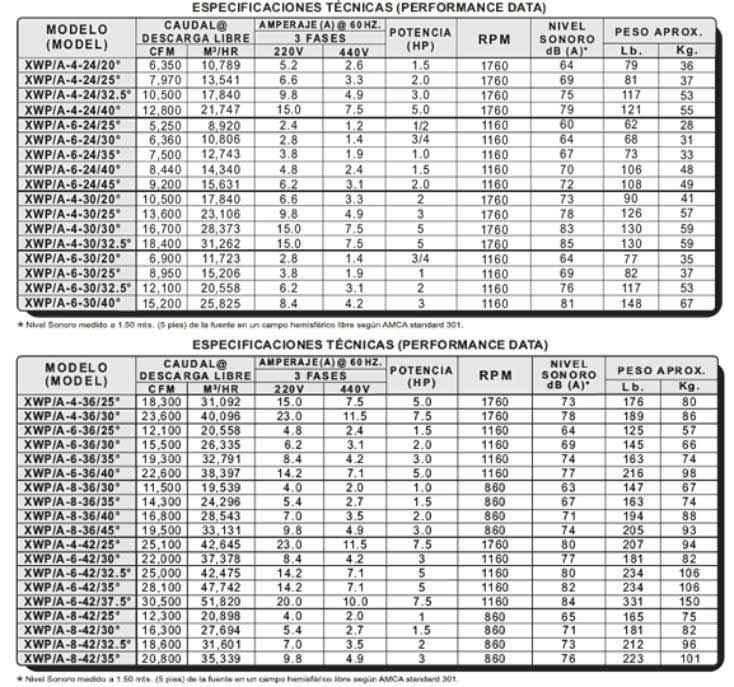

Especificaciones Técnicas

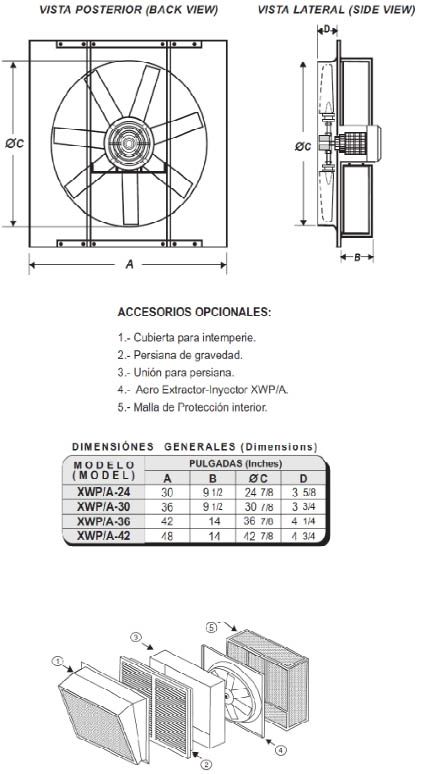

Dimensiones Generales
Venta de Extractores Industriales en México
En ExtractordeAire.com.mx ofrecemos asesoría técnica para seleccionar el extractor helicoidal adecuado según:
- Metros cúbicos del espacio
- Renovaciones de aire por hora
- Presión estática requerida
- Condiciones ambientales
Contáctanos para cotizar tu extractor de aire industrial para nave, bodega o planta industrial.
